Description

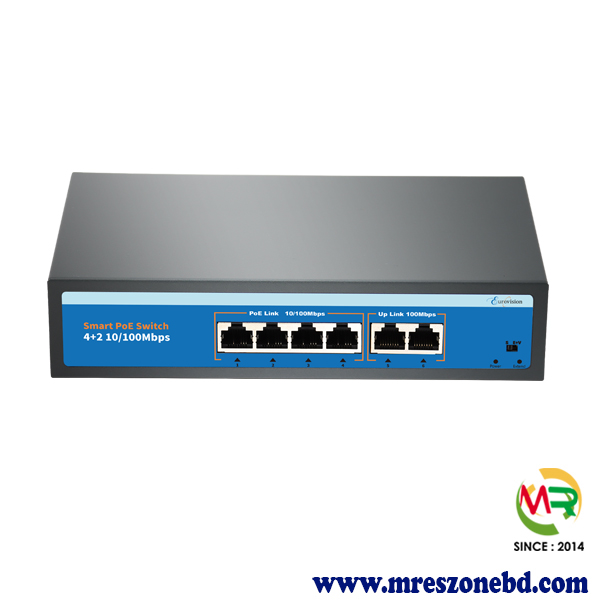

Eurovisin EV-F0420FBL-A 4 Port PoE & 2 Up-Link Port Network PoE Switch (Malaysia)
| Network Standard | IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| Port | 4*10/100Mbps RJ45 port
2*10/100Mbps RJ45 uplink port |
| POE Power | 4*10/100Mbps RJ45 port support POE+
The whole power max. is 78W Each port max. power supply reached 30W |
| POE Connection | 1-4 port support IEEE802.3af/at
Both1/2+、3/6- and 4/5+、7/8- End-span 250M Transmission（Manually Open） |
| Performance | Store and forward
MAC address table 1k Switching capacity1.6Gbps |
| Forwarding Rate | 10BASE-T:14880PPS/port
100BASE-tx：14800pps/port |
| Port Function | Power priority mechanism, fast and forward, MAC automatic
learning and aging , IEEE802.3X Full-duplex and backpressure for half-duplex mode |
| Environment | Operating Temperature：-10℃ – -55℃ |
| Power | Built in power base board
Input：220V，50HZ，Output：DC52V±5% 1.5A ≤78W |
| Weight &Size | 1KG
200mm×118mm×44mm(L×W×H |
Product Overview:
The Eurovisin EV-F0420FBL-A is a 100Mbps Ethernet PoE switch featuring 4 PoE ports and 2 uplink ports. Designed for efficient power and data transmission, it supports IEEE 802.3af/at standards, offering a maximum power output of 78W. With its VLAN and Extend modes, it ensures secure and long-distance data transmission, making it ideal for various networking applications.
Benefits:
– Simplifies network setup by combining power and data transmission
– Reduces installation costs with PoE support
– Enhances network security with VLAN isolation
– Extends network reach up to 250 meters in Extend mode
– Reliable performance in various environmental conditions
Applications:
– IP surveillance systems
– Wireless access points
– VoIP phones
– Small to medium-sized business networks
– Educational institutions
FAQs:
Q: Does the EV-F0420FBL-A support gigabit speeds?
A: No, it supports 10/100Mbps speeds on all ports.
Q: Can it operate in outdoor environments?
A: It is designed for indoor use with an operating temperature range of -10°C to 55°C.
Q: What is the maximum distance for data transmission?
A: In Extend mode, it supports data transmission up to 250 meters.
Why Choose Eurovisin EV-F0420FBL-A ?
The EV-F0420FBL-A offers a cost-effective solution for powering and connecting multiple network devices. Its support for VLAN and long-distance transmission ensures secure and flexible network configurations, making it suitable for various applications.
About Eurovisin EV-F0420FBL-A :
Manufactured in Malaysia, Eurovisin’s EV-F0420FBL-A combines quality and functionality, adhering to international standards to meet the demands of modern networking environments.
