Description

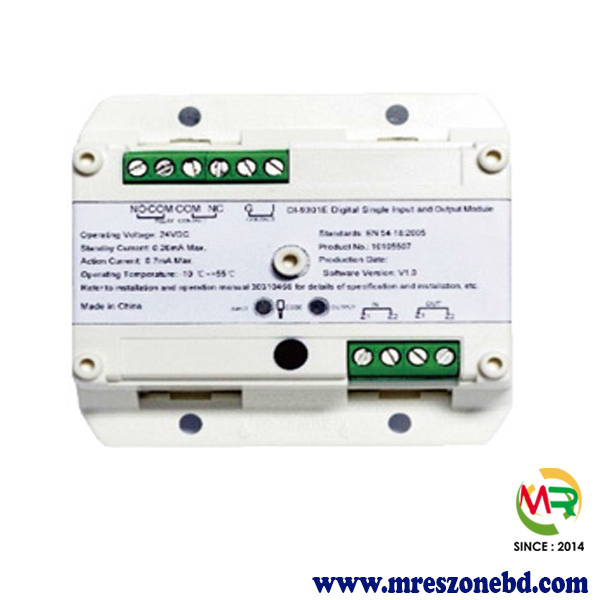

GST DI-9301E Intelligent Digital Single Input and Output Module (LPCB Certified)
Technical Specification:
| Operating Voltage | Loop24VDC(16VDC-28VDC)
Power Limited |
| Standby Current | |
| Action Current | |
| Output Capacity | 2A@30VDC,Normally-open/Closed |
| Programming | Electronically addressing |
| Address Range | 1 address, from 1 to 242
2 addresses, from 1 to 241 |
|
Indicator |
Input LED: Red. It lights in receivingfeedbacks,lights0.5son,0.5soffininputfaults, and flashes in other states.
Output LED: Red. It lights in relay action,0.5sonand0.5soffasthereisoutputfault.It turns off in other states. |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -10°C~ +55°C |
| Relative Humidity | |
| Material and Color of Enclosure | ABS, white (RAL9016) |
| Dimension(L×W×H) | 85.3mm×78mm×33mm |
| Weight | About 66.5g |
Product Overview:
The GST DI-9301E is an intelligent addressable single input and output module designed for advanced fire alarm systems. Manufactured by GST (a Carrier company, USA), this module provides both monitoring (input) and control (output) functions, making it ideal for applications where fire system devices must communicate bidirectionally. Certified by LPCB, it ensures system compliance with international fire safety standards.
Benefits:
Benefits:
– Dual functionality in a single module
– Easy system expansion and control
– Reduces wiring and installation cost
– Compatible with GST intelligent panels
– Reliable operation in critical fire safety systems
– Enables remote device monitoring and activation
Applications:
– Fire suppression system activation
– HVAC shutdown control
– Elevator recall functions
– Emergency door release
– Industrial and commercial fire alarm integration
– Warehouses, malls, hospitals, and high-rise buildings
FAQs:
FAQs:
Q: Can the DI-9301E be used with non-GST panels?
A: No, it’s designed to work with GST addressable panels.
Q: What type of devices can it control?
A: It can control fire dampers, fans, doors, and third-party modules.
Why Choose GST DI-9301E ?
The DI-9301E offers reliable two-way communication between fire alarm panels and other system components. Its dual functionality and LPCB certification make it a smart, space-saving solution for integrated fire safety applications.
About GST DI-9301E :
Built under the globally recognized Carrier brand GST, the DI-9301E is trusted in mission-critical systems across the world. Its robust performance and intelligent interface offer enhanced flexibility for modern fire detection and control setups.
“GST DI-9301E input output module Bangladesh, intelligent fire module GST BD, GST input output control module price BD, LPCB certified fire module Bangladesh, addressable I/O module GST Bangladesh, GST DI-9301E module supplier BD, Carrier GST fire alarm module BD, GST fire system integration module Bangladesh, dual function fire module BD, GST module for fire suppression Bangladesh”
