Description

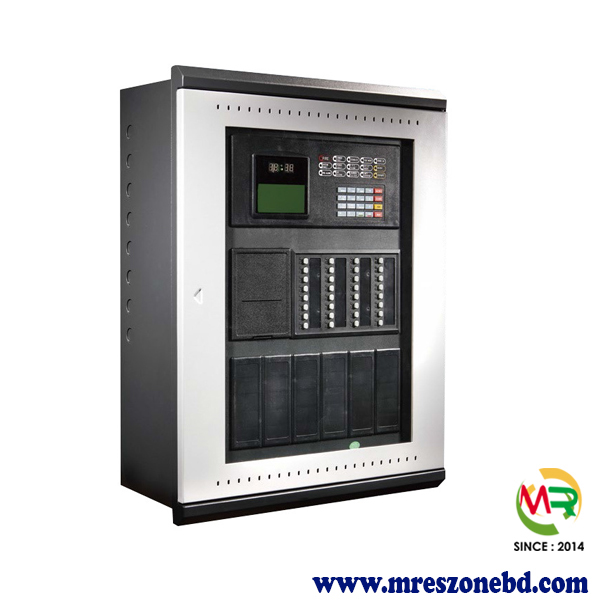

GST GST200N-1 Addressable Fire Alarm Control Panel (LPCB Certified)
Technical Specification:
| Primary Supply | 100-240VAC, 50/60Hz |
| AC Current | 1.5A |
| Standby Power | 21AH/24VDC |
| Max. Battery Resistance | |
| Loop Capacity | 1 or 2 Loops |
| Zone Capacity | 30 |
| Device Capacity | 235for1stloop 242 for 2ndloop |
| Printer | Optional Thermal ASCII code printer |
| Display | 8(lines)x 18 (characters), LCD |
| Network(RS485) | Class A, Max. 32 panels (by card) |
|
Network(CAN) |
Class A, Max. 240 panels (by card) ClassB,Max.240panels(by card and other accessories) |
| PC Port | RS232/USB interface(by card) |
| Protection | IP30 |
| Operating Environment | 0°C~+40°C
|
| Dimension | 406(W) X 666(H) X 130(D) mm2 |
Others Model:
| Model number | Description |
| GST200N-1 | Single loop, English |
| GST200N-2 | Dual loops, English |
| Optional Components | |
| Model number | Description |
| LC200 | Loop Card |
| P-9930 | RS232 Communication Card |
| P-9940A | RS485 Class A Network Card |
| P-9960 | CAN Class B Network Card |
| P-9960A | CAN Class A Network Card |
| P-9930ModBus | ModBus Communication Card |
Product Overview:
The GST200N-1 is a 1-loop addressable fire alarm control panel manufactured by GST, a part of Carrier (USA). Designed for intelligent fire detection and alarm management, this panel is LPCB certified and ideal for small to medium-sized buildings requiring reliable and scalable fire safety solutions.
Benefits:
– Precise device-level fire detection
– Easy to install and maintain
– Ideal for small to mid-size commercial setups
– Ensures compliance with international fire codes
– Supports multiple detection and notification devices
Applications:
– Schools and universities
– Office buildings
– Hotels and hospitals
– Shopping malls
– Industrial complexes
FAQs:
Q: How many devices can be connected to the panel?
A: One loop can connect up to 198 addressable devices.
Q: Is GST200N-1 expandable?
A: Yes, it can be networked with other panels for system expansion.
Q: Does it support third-party devices?
A: It is primarily compatible with GST addressable devices.
Why Choose GST200N‑1 ?
– Reliable, proven technology from Carrier (USA)
– LPCB listed for quality and safety assurance
– Widely used in Bangladesh for new and retrofit projects
– Great value for intelligent fire alarm applications
About GST200N‑1 :
GST is a global fire detection brand under Carrier, USA. The GST200N-1 panel offers modern fire detection in a compact system, perfect for Bangladesh’s growing infrastructure sector, and ensures reliability, compliance, and smooth integration.
