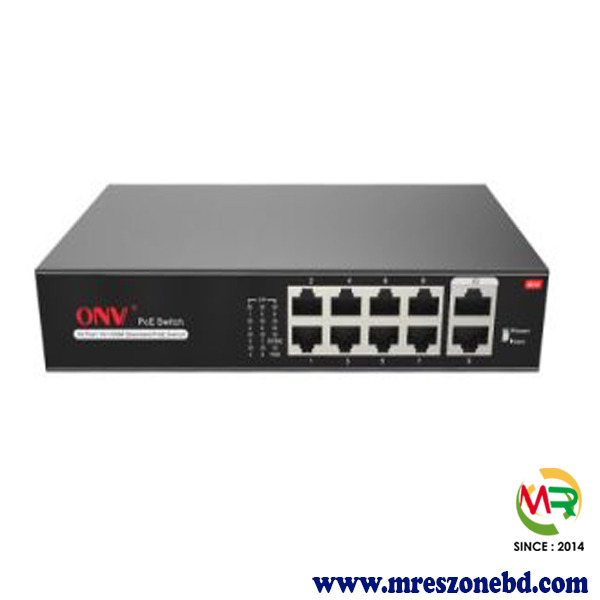

ONV-H1108PSD 8-Port PoE Switch with 2 Uplink | Best for IP CCTV & Network Setup in Bangladesh
| Model | ONV-H1064PSD | ONV-H1108PSD |
| Interface Characteristics | ||
| Fixed Port | 4*10/100Base-TX PoE ports (Data /Power)
2*10/100Base-TX uplink RJ45 ports (Data) |
8*10/100Base-TX PoE ports (Data /Power)
2*10/100Base-TX uplink RJ45 ports (Data) |
| Ethernet Port | Port 1- 6/ 1-10 can support 10/100BaseTX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
| Functional Switch | 250m: long-distance and VLAN isolation (Default: off, Use: on), After opening, port 1-4/ 1-8 support 10M/250m transmission | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 1.6Gbps | 2Gbps |
| Forwarding
Rate@64byte |
0.89Mpps | 1.488Mpps |
| MAC | 1K | 2K |
| Buffer Memory | 768K | 1.25M |
| Jumbo Frame | 1536byte | |
| LED Indicator | Power: PWR (Green), Functional switch: 100m/ 250m (Green)
Network/ PoE: 1-6/ 1-10: (Green) |
|
| PoE & Power Supply | ||
| PoE Port | Port 1 to 4 | Port 1 to 8 |
| Power Supply Pin | 1/2(+) 3/6(-) | |
| Max Power Per Port | 30W, PoE+ | |
| Total PWR / Input Voltage | 65W (AC100-240V) | 120W (AC100-240V) |
| Power Consumption | Standby<3W, Full load<65W | Standby<5W, Full load<120W |
| Power Supply | Built-in power supply, AC100-240V 50-60Hz, 1.0A | Built-in power supply, AC100-240V 50-60Hz, 2.2A |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+80°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 142.5*115*40mm | 195*130*40mm |
| Net /Gross Weight | <0.55kg / <0.8kg | <0.75kg / <1.0kg |
| Installation | Desktop, Wall mount | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
Product Short Description:
ONV-H1108PSD is a professional-grade 8-port PoE switch with 2 uplink ports, designed for IP camera surveillance and small to medium business networks. Delivers stable power and data with up to 250m long-distance support.
Product Description:
The ONV-H1108PSD is a high-performance 10-port unmanaged PoE switch featuring 8 PoE ports and 2 uplink ports, ideal for IP CCTV systems, wireless APs, and VoIP networks. Supporting IEEE 802.3af/at, it delivers up to 30W per port with a total PoE budget of 120W, perfect for powering HD IP cameras and network devices.
Its extended mode allows data and power transmission up to 250 meters, reducing infrastructure costs and simplifying deployment. Designed with a durable metal casing and plug & play functionality, this switch is a reliable solution for professional installations in Bangladesh.
Overview Details:
– Model: ONV-H1108PSD
– PoE Ports: 8 × 10/100Mbps
– Uplink Ports: 2 × 10/100Mbps
– PoE Standard: IEEE 802.3af/at
– PoE Budget: 120W Total
– Max per Port: 30W
– Transmission Distance: Up to 250m (extend mode)
– Switching Capacity: 1.8Gbps
– Application: IP Camera, Wireless Access Point, Office LAN, Retail CCTV
Why Choose:
– Best for CCTV systems in Bangladesh
– Reliable for 24/7 operation
– Saves power and cabling cost
– Easy to deploy for non-technical users
– Trusted ONV brand with stable performance
FAQs:
Q: Can it power 8 cameras simultaneously?
A: Yes, within the 120W PoE budget.
Q: Does it require configuration?
A: No, it’s plug and play.
Q: Is it suitable for long-distance coverage?
A: Yes, up to 250 meters in extend mode.
Popular ONV Models We Offer:
– ONV-H1064PSD
– ONV-H1108PSD
– ONV-H1116PL
– ONV-H1082G
About ONV-H1108PSD:
The ONV-H1108PSD is a top-selling PoE switch in Bangladesh for its affordability, performance, and durability. Ideal for 8-channel CCTV systems, small office networks, and retail surveillance, it’s a preferred choice for IT installers and business owners looking for efficient power and data transmission in one device.
