Description

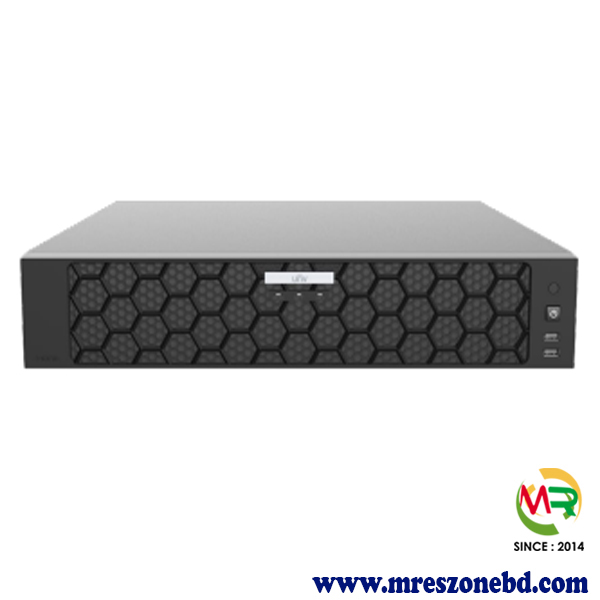

Uniview NVR508-64B 64-Ch 8-SATA 4K NVR
| Audio and Video | ||
| IP Camera Input | 64 Channel | |
| Display | ||
| Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| Resolution | Simultaneous Output: VGA: 1/4/6/8/9/16/25/36/64 HDMI: 1/4/6/8/9/16/25/36/64 Independent Output: VGA: 1/4/6/8/9/16/25/32 HDMI: 1/4/6/8/9/16/25/32 |
|
| Decoding Capacity | Format: Ultra 265/H.265/H.264 | |
| Multi-Screen Display | Synchronous Playback : 16-ch | |
| Recording | ||
| Compression | G.711A, G.711U | |
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Record Rate | Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1 |
|
| Video Detection And Alarm | ||
| Video Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting | |
| Playback And Backup | ||
| Sync Playback | 16 channel | |
| Network | ||
| Interface | RJ45 | |
| Ethernet Port | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| Network Function | Incoming Bandwidth: 320Mbps Outgoing Bandwidth: 160Mbps |
|
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 8 SATA interface | |
| HDD Mode | Up to 12TB for each HDD | |
| Auxiliary Interface | ||
| USB | Front: 2 x USB2.0, Rear panel: 1 x USB3.0 | |
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | ≤ 32W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Construction | ||
| Dimensions | 442mm × 426mm × 89mm (17.4″ × 16.8″ × 3.5″ | |
| Net Weight | ≤ 4Kg (8.80lb) | |
| Warranty | ||
| Manufacturing Warranty | 1 year Warranty | |
Product Overview:
The Uniview NVR508-64B is a high-performance enterprise-class 64-channel Network Video Recorder (NVR) built for large-scale surveillance projects. It supports Ultra 265/H.265/H.264 compression, 320 Mbps incoming bandwidth, and up to 16MP resolution recording, ensuring crystal-clear video storage and playback. With 8 SATA HDD bays (up to 96TB total), hot spare redundancy, and ANR technology, this NVR guarantees reliable, secure, and scalable video storage for mission-critical environments.
Key Benefits:
-
64-channel input for massive surveillance coverage
-
Ultra 265/H.265/H.264 compression for optimized bandwidth and storage
-
320 Mbps incoming & 160 Mbps outgoing bandwidth for smooth recording and remote viewing
-
Independent HDMI & VGA outputs for flexible display options
-
Supports up to 16MP resolution recording for ultra-clear video quality
-
8 SATA HDD bays (up to 96TB total, 12TB per drive) for extended storage
-
N+1 hot spare support for redundancy and failover protection
-
ANR (Automatic Network Replenishment) technology ensures recording even during network outages
-
Cloud upgrade support for simplified remote maintenance
Applications:
-
Large enterprises & multinational corporations
-
Airports, seaports & railway stations
-
Smart city surveillance projects
-
University campuses & hospitals
-
Industrial plants & government facilities
Why Choose Uniview NVR508-64B?
The Uniview NVR508-64B is engineered for high-capacity, high-reliability surveillance projects. Its powerful 64-channel input, ANR technology, and hot spare support make it ideal for organizations that cannot afford downtime or data loss. With cloud upgrade and future-ready 16MP resolution, it’s a future-proof investment for professional security systems.
From MR Electric & Security Zone, you get authentic Uniview products with warranty and expert support.
About Uniview NVR508-64BÂ :
As part of Uniview’s enterprise NVR lineup, the NVR508-64B is designed for large-scale deployments requiring maximum reliability, scalability, and video quality. It integrates advanced storage technologies with flexible connectivity, ensuring uninterrupted surveillance operations.
