Description
Product Description
|
Brand
|
ASICO
|
|
Product Name
|

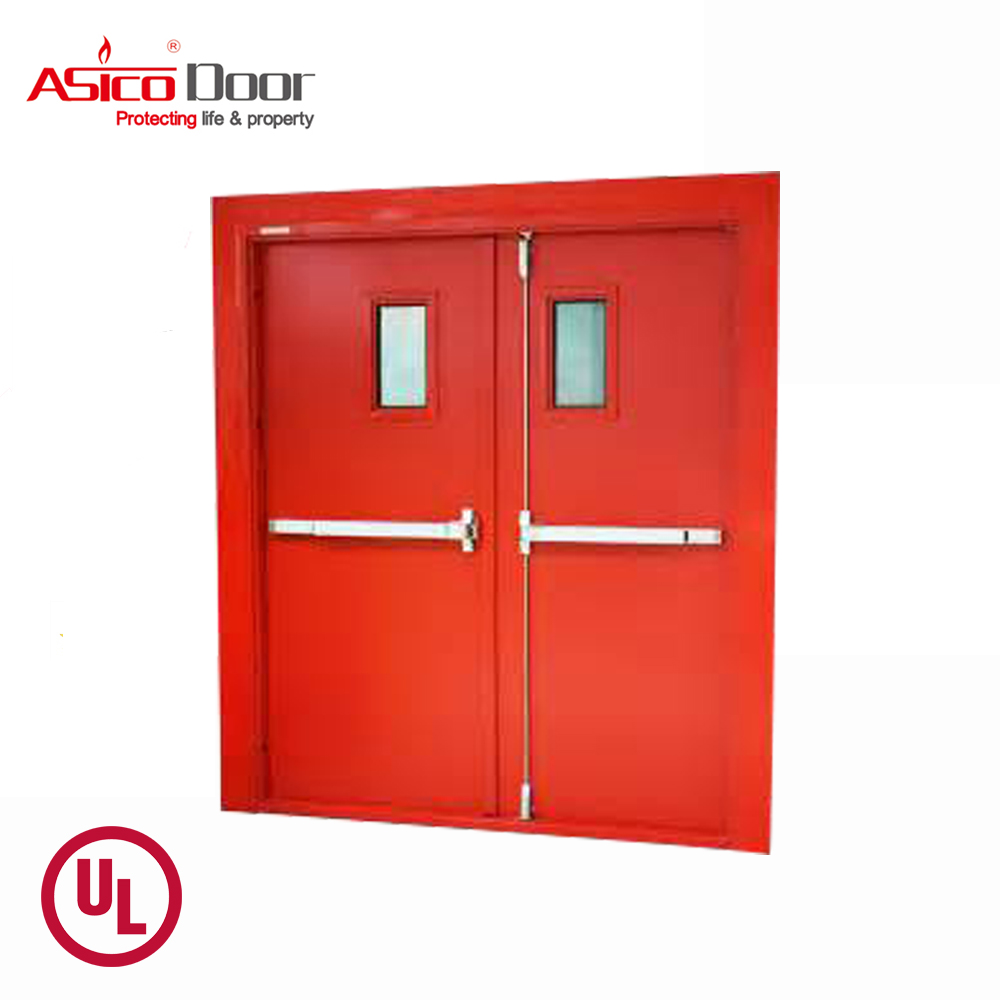

ASICO KH043 China Emergency Exit Steel Metal Door With Panic Push Bar Exterior
|
|
Standard
|
UL 10(b), UL 10(c), UBC 7-2, NFPA, ASTM
|
|
Certifications
|
UL NUM(R38744/R38745)
|
|
Filler Material
|
Honey Core, Mineral rock wool, polyurethane core.
|
|
Fire rated time
|
1 hour up to 3 hours.
|
|
Size
|
Maximum size is 8’x8’ (2440x2440mm)
|
|
Door leaf sheet
|
22 Ga. – 18 Ga. (0.8/1.0/1.2 mm)galvanized steel/cold roll steel
|
|
Door frame
|
16 Ga. – 14 Ga. (1.5mm-2.0mm). cold roll steel/galvanized steel
|
|
Surface finish
|
Door leaf and frame powder coated finish.
|
|
Frame depth
|
115mm – 240mm
|
|
Opening
|
Swing, Inward/Outward
|
|
Color
|
RAL color system, could be customized as well.
|
|

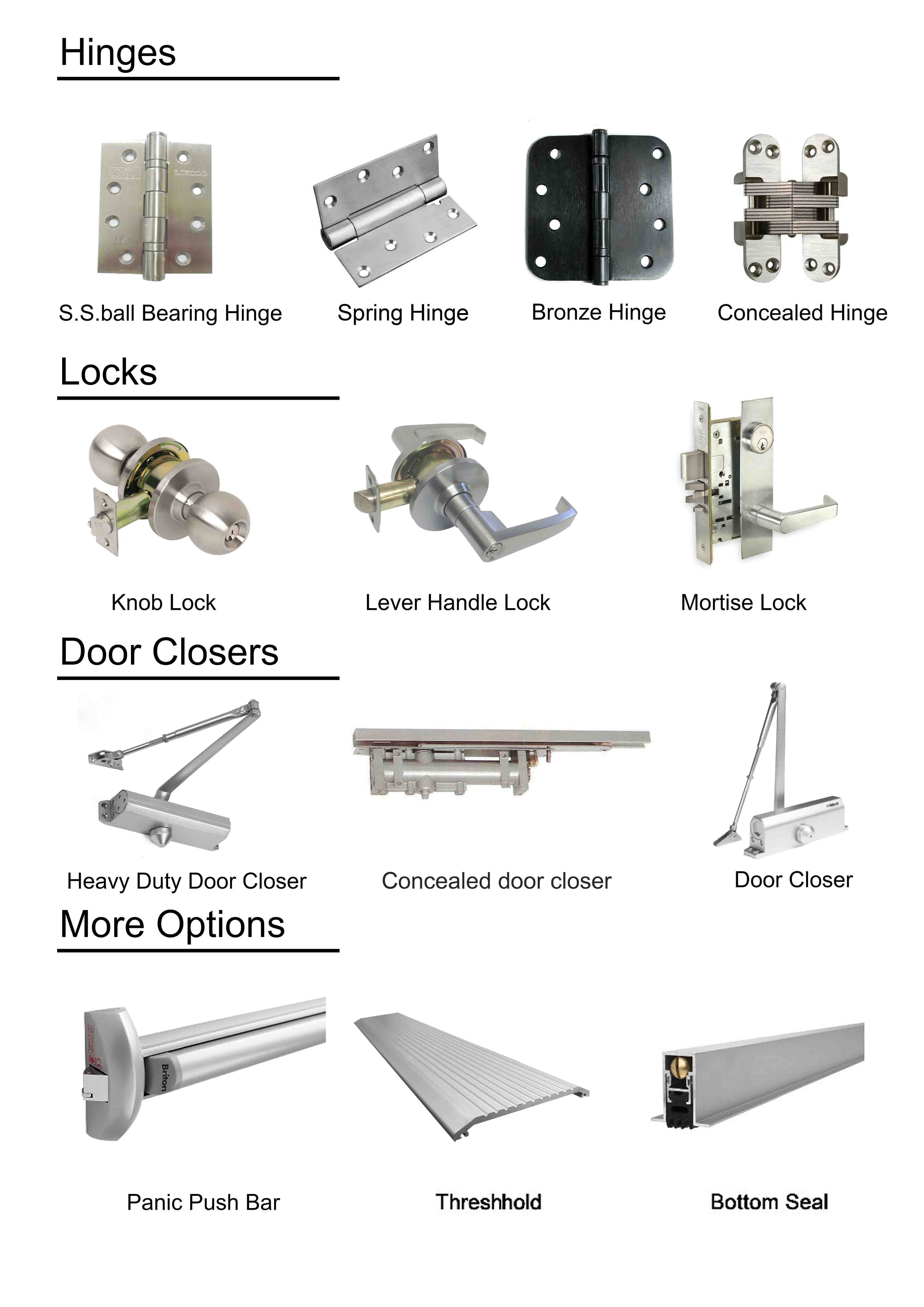

Accessories
|
Lock,handle,hinges,door closer,panic bar and other as requested.
|
|
Vision Panel
|
With or without as requested.
|
|
Lite Frame
|
UL listed lite frame. (UL Number: 38990)
|
|
Louver
|
With or without as requested.
|
|
Feature
|
Fire proof and thermal insulation.
|
|
Application
|
Suitable for building project, business, home decoration(Office, hotel, church, home and so on.)
|
|
Package
|
Inside with PE paper, outside is double layers carton box, then wooden pallets packaged.
|
Mould & Hardware
