Description

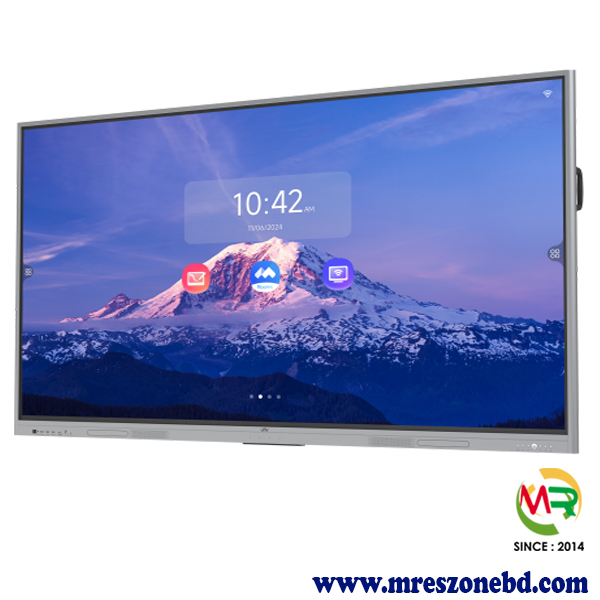

Uniview MW3586-U-CE 86” Smart Interactive Display
| Model | MW3586‑U‑CE |
| Panel | |
| Backlight | DLED |
| Panel Size | 86″ |
| Resolution | 3840 × 2160 |
| Brightness (cd/m²) | 500 |
| Contrast Ratio | 5000 : 1 |
| Response Time (ms) | 8 |
| Color Support | 1.07 billion |
| Viewing Angle (H/V) | 178°/178° |
| Refresh rate (Hz) | 60 |
| Color Gamut | 72% |
| Lifespan | 50000H |
| Glass | 4 mm tempered glass, level 7 on Mohs hardness scale, anti‑glare |
| Surface Hardness | 9H (7 on the Mohs scale) |
| Haze Value | 25% |
| Display Size (mm) | 1895.04 x 1065.96 |
| Pixel Pitch (H × V) (mm) | 0.4935 x 0.4935 |
| Touch | |
| Touch Control | Contactless IR sensor, supports 50‑point multi‑touch, 20-point write |
| Touch Precision (mm) | ±1 |
| Recognizable Object | 10 points, 2mm |
| Touch Response Time (ms) | ≤2 |
| Touch technology | Infrared touch |
| Touchscreen Input | Opaque objects (e.g. fingers, pens) |
| System | |
| CPU | RK3588: 4 x Cortex-A76 (2.4 GHz) and 4 x Cortex-A55 (1.8 GHz) |
| CPU Frequency | 2.4GHz |
| RAM/ROM | DDR4:16GB，eMMC：256GB |
| Operation System | Android 13.0 |
| Interface | |
| Video Input | 3 x HDMI IN (4K), 1 x DP IN, 1 x VGA IN, 1 x YPbPr IN |
| Video Output | 1 x DP OUT, 1 x HDMI OUT (4K) |
| Audio Input | 1 x AUDIO IN |
| Audio Output | 1 x EARPHONE, 1 x coaxial audio output interface (COAX) |
| Other Interfaces | 1 x RS232, 3 x front USB 3.0, 4 x on‑board USB 3.0, 2 x TOUCH USB, 2 x Type‑C, 1 x TF CARD, 1 x IR IN |
| Network | 1 x LAN OUT, 1 x LAN IN |
| Audio | |
| Speaker | Left channel 20w: 1 × treble(5 W) + 1 x bass(15W) Right channel 20w: 1 × treble(5 W) + 1 x bass(15W) |
| Wi‑Fi | |
| Wi‑Fi Configuration | Wi‑Fi 5+Wi‑Fi 6, supports 5 GHz/2.4 GHz |
| Wi‑Fi Performance | 30m² coverage, 20m transmission distance in open space |
| Bluetooth | |
| Bluetooth Version | 5.2 |
| Bluetooth Performance | 10m transmission distance in open space |
| OSD | |
| Multi‑Language | 27 (Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish(ES‑ES), Spanish(ES‑MX), Portuguese(Brazil), Portuguese, German, Italian, Dutch, Polish, Korean, Catalan, Galician, Vietnamese, Bulgarian, Kazakh, Russian, Ukrainian, Thai, Uzbek, Hungarian, Croatian, Romanian) |
| VESA | |
| Wall Mount Hole (mm) | 800 x 400 |
| Wall Mount Screw | 4 x M8 screw hole |
| General | |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Overall Power Consumption (W) | <360 (without OPS) |
| Standby Power Consumption (W) | < 0.5 |
| Product Dimensions (W × H × D) (mm) | 1967 x 1173 x 89 |
| Package Dimensions (W × H × D) (mm) | 2119 x 1339 x 259 |
| Operating Temperature | 0°C to 50°C |
| Weight (kg) | Net weight: 68 Gross weight: 82 |
| Operating Humidity | 10% to 90% RH (noncondensing) |
| Storage Temperature | ‑20°C to 60°C |
| Storage Humidity | 0% to 95% RH (noncondensing) |
| Accessories Included | 1 x power cable, 2 x stylus pen, 1 x quick guide, 1 x wall mounting bracket, 1 x IR remote control |
| Certification | |
| Certification | CE‑EMC, CE‑RED, CB/LVD, FCC, FCC‑ID |
Product Overview:
The Uniview MW3586-U-CE is a premium 86-inch Smart Interactive Display designed for education, business meetings, and collaborative environments. With its 4K UHD anti-glare resolution (3840 × 2160), Android 13.0 operating system, 8GB DDR4 RAM + 128GB storage, and Wi-Fi 5 + Wi-Fi 6 support, it ensures smooth performance and enhanced connectivity. The 50-point touch and 20-point write support make it ideal for group collaboration, online teaching, and professional presentations.
Key Benefits:
-
Large 86’’ Ultra HD display with crystal-clear anti-glare visuals
-
Powerful hardware – 8GB RAM & 128GB ROM for seamless operation
-
Latest Android 13.0 OS for smooth user experience and wide app support
-
50-point multi-touch & 20-point write capability for group interaction
-
178° viewing angle for wide visibility in classrooms & conference rooms
-
Built-in 6-array dual-channel speakers deliver high-quality sound
-
Wi-Fi 5 + Wi-Fi 6 & Bluetooth 5.2 ensure fast and stable wireless connectivity
Applications:
-
Education: Smart classrooms, interactive learning, distance education
-
Corporate: Business meetings, video conferencing, team collaboration
-
Public Sector: Training rooms, smart offices, government sessions
-
Healthcare: Telemedicine, digital training, remote consultations
Why Choose Uniview MW3586-U-CE?
The Uniview MW3586-U-CE is more than just a display—it’s a complete interactive solution. With 4K UHD resolution, advanced multi-touch features, powerful performance, and strong connectivity options, it ensures a future-ready platform for smart learning and business collaboration.
From MR Electric & Security Zone, you get authentic Uniview products with warranty and expert support.
About Uniview MW3586-U-CE :
The MW3586-U-CE belongs to Uniview’s latest Smart Interactive Display series, offering cutting-edge visual quality, robust hardware, and collaborative tools. Its ultra-wide 86’’ screen is perfect for large classrooms, lecture halls, and enterprise boardrooms.
Need Smart Interactive Display System Support? Contact Us Now!
MR Electric & Security Zone
Hot-Line: +880 197225 7552, +880 183008 8973
Email: mreszonesales@gmail.com
Head Office: 205/1B(GF), South Pirerbagh, Mirpur, Dhaka, Bangladesh
📞 Call us today for a free site inspection or quotation.
